Z Blade Sigma Mixer Machine Soap Production Mixer Bentonite Kneader Z Blade Sigma Blade Sigma Mixer for Silicon Rubber
Z Blade Sigma Mixer Machine Soap Production Mixer Bentonite Kneader Z Blade Sigma Blade Sigma Mixer for Silicon Rubber
Model NO. : 5L 10L 15L 30L 50L 100L 500L 1000L 2000L 3000L
Application ; Viscous Fluid
Application Area : Chemical
Certification ; CE, ISO
Condition:New
Mixing Drum Shape : Sigma
Stirring Type
Kneading
Warranty : 1 year
Working : Kneading
Dimension: Customer
Application Scope : Viscous Fluid
Capacity : 5-3000L
Mixing : Double
Nameplate : ABSTER
Layout Type : Horizontal Operating type
Continuous Operating :Mixer Type Sigma Mixer :
Transport Package : Three-Layer Plywood
Specification : 5L 10L 100L 500L 1 000L 2000L 3000L
Trademark : ABSTER
Origin : India
HS Code : 8479820090
Production Capacity : 10set/Month
| specification | 5L | 10L | 100L | 300L | 500L | 1000L | 1500L | 2000L | 3000L | |||
| Effective volume L | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | |||
| Feeding amount L | 3.5 | 7 | 70 | 210 | 350 | 700 | 1100 | 2100 | ||||
| Main motor power Kw | 1.1-1.5 | 4-7.5 | 7.5-18.5 | 15-30 | 18.5-45 | 22-55 | 37-75 | 45-110 | ||||
| Screw motor power Kw | NO | 3-4 | 3-4 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | |||||
| Discharge the way |
High temperature | Manually turn cylinder | Hydraulic cylinder | |||||||||
| Other type | Manually turn cylinder | Hydraulic cylinder | Hydraulic turn cylinder, screw discharge, the next material | |||||||||
| Mixing speed r/min | 33/23 | 35/22 | 37/21 | 35/25 | 30/16 | |||||||
| Heating the way | High temperature | no | electricity | |||||||||
| Other type | Electricity/steam | |||||||||||
| Electric heating power Kw | HT | 6-10 | 8-10 | 12-15 | 30-35 | 35-45 | 60-80 | 90-110 | 110-140 | 160-190 | ||
| OTHER | 1.8 | 1.8 | 4.2 | 12 | 18 | 24 | 36 | 36-54 | 54-72 | |||
| Steam pressure Mpa | 0.3 | |||||||||||
| Vacuum type vacuum | -0.090Mpa | |||||||||||
| Pressure type pressure MPa | 0.45 | 0.35 | ||||||||||
| Dimension mm | ordinary | L | 1100 | 1100 | 1600 | 2150 | 2550 | 2750 | 3030 | 3060 | ||
| W | 410 | 410 | 610 | 850 | 1000 | 1200 | 1850 | 2250 | ||||
| H | 510 | 510 | 1360 | 1300 | 1550 | 1800 | 1850 | 2070 | ||||
| vacuum | L | 1100 | 1100 | 1600 | 2150 | 2550 | 2750 | 3030 | 3100 | |||
| W | 1000 | 1000 | 610 | 1250 | 1320 | 1600 | 2150 | 2350 | ||||
| H | 520 | 520 | 1360 | 1400 | 1550 | 1800 | 1850 | 2070 | ||||
| Weight kg | 210 ~300 |
250 ~340 |
1100 ~1250 |
2000 ~2200 |
2800 ~3000 |
4200 ~4500 |
5200 ~5500 |
6400 ~6800 |
9000 ~9500 |
|||
| Table parameters for reference only, according to customer requirements can be designed (a variety of volume, speed and special requirements) dedicated models |
||||||||||||
Z blade Sigma Mixer Machine soap production mixer bentonite Kneader Z blade sigma blade sigma mixer for Silicon Rubber

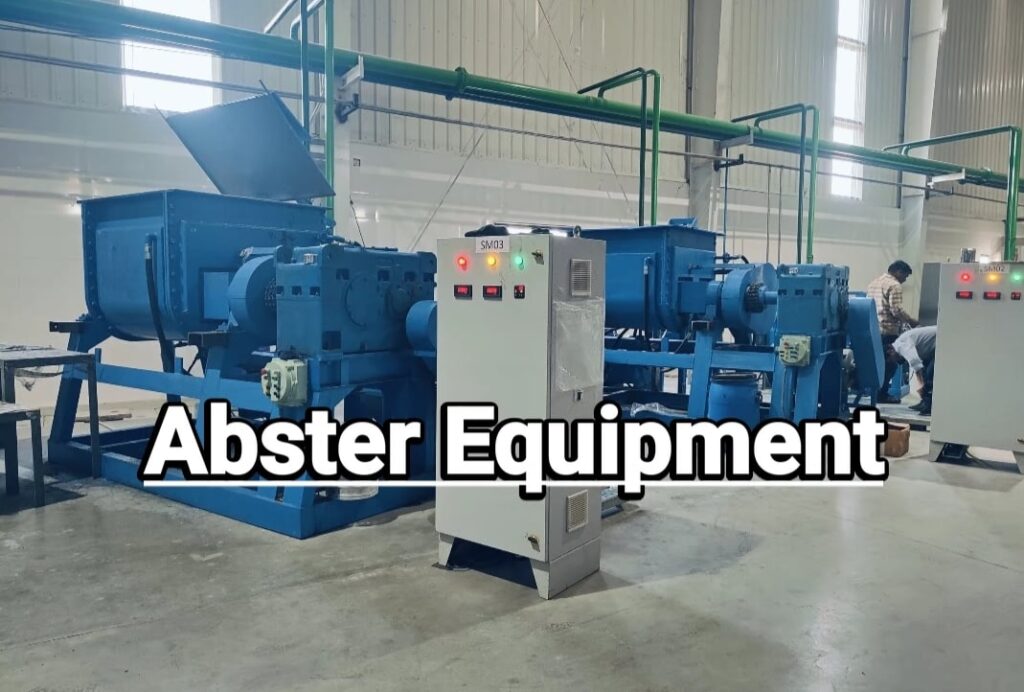

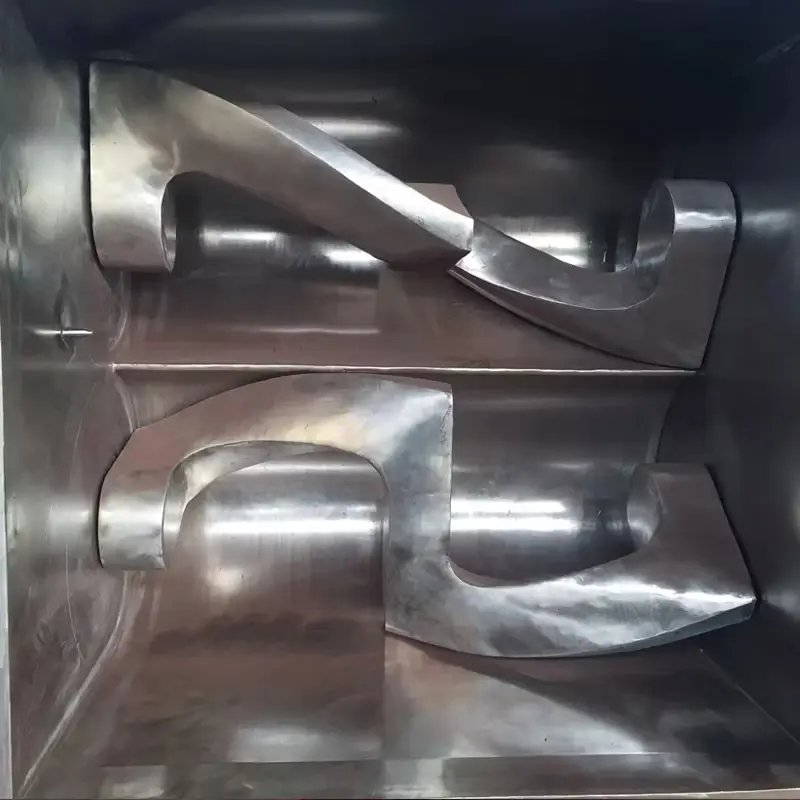

The Sigma mixer is consist of mixing chamber ,frame support ,hydraulic system ,electric control system, Discharge system And two Z shape blade in the chamber drove by the motor and the two blade rotating with different speed ,but can be control by the inverter .The sigma blade mixer caused by a pair of mutually cooperating and rotating Z blades to produce a strong shearing action so that the semi-dry state or the rubbery viscous plastic material enables the material to react quickly to obtain a uniform mixing.
