200 Liter Bead mill

A 200-liter bead mill is a type of grinding equipment used for dispersing, mixing, and grinding materials, particularly in the production of paints, inks, coatings, and other chemical applications.

Here are some key points about 200-liter bead mills:

Key Features
1. *Capacity*: 200 liters, suitable for large-scale production.
2. *Grinding Media*: Beads, typically made of glass, ceramic, or steel, are used to grind and disperse materials.
3. *Speed*: Variable speed control, usually ranging from 0 to 3000 rpm.
4. *Motor Power*: Typically ranges from 10 to 30 kW, depending on the specific model and manufacturer.

Applications
1. *Paints and Coatings*: Bead mills are widely used in the production of paints, coatings, and inks.
2. *Chemical Industry*: Used for grinding and dispersing chemicals, such as pigments, dyes, and fillers.
3. *Pharmaceuticals*: Bead mills are used in the production of pharmaceuticals, such as ointments, creams, and suspensions.

Manufacturers
prominent manufacturers of 200-liter bead mills

Would you like to know more about bead mills or is there something specific you’d like to inquire about?

A bead mill works by agitating grinding media, or beads, inside a chamber to grind or disperse particles into smaller sizes:

Add sample and beads: Place the sample and beads inside a tube or chamber.

Rotate shaft: A rotating shaft with impellers agitates the beads.
Collisions and shear: The beads collide with the sample and the tube, creating impact and shear forces that break the particles into smaller sizes.

Separate beads and particles: A filtering structure at the outlet of the chamber separates the beads from the particles.

Bead mills can be used for a variety of applications, including:

Dissociating tissue: Bead mills can be used to recover live cells or extract small molecules like proteins and nucleic acids.

Grinding large particles: Larger beads can break down large or dense structures.
Dispersing nanoparticles: Bead mills can disperse nanoparticles.

The type and size of the beads used in a bead mill are important factors. Denser beads are more effective for tougher materials, while irregularly shaped beads create greater shear forces and work well with fibrous materials.

BEAD MILL (BATCH TYPE SAND MILL)

BEAD MILL APPLICATION:

Solvent And Waterborne Dispersions, Industrial And Architectural Coatings, Automotive Refinishes, Clear Coats, Inks – Liquid, UV, Screen, Paste, Agricultural – Fungicides, Herbicides, Pesticides, Pharmaceutical, Cosmetics, Leather Finishes, Flame Retardants.

BEAD MILL FEATURES & BENEFITS: Finer And Faster Grinding For Inks And Coatings, Single Machine Processing – Premixing, Pre-Grinding, And Milling All In One Machine, Enhanced Quality, Higher Productivity, Simple Operation Small Batch Production, Minimal Solvent Emissions.

we also manufacturing continuous type of Bead Mill (Sand Mill).

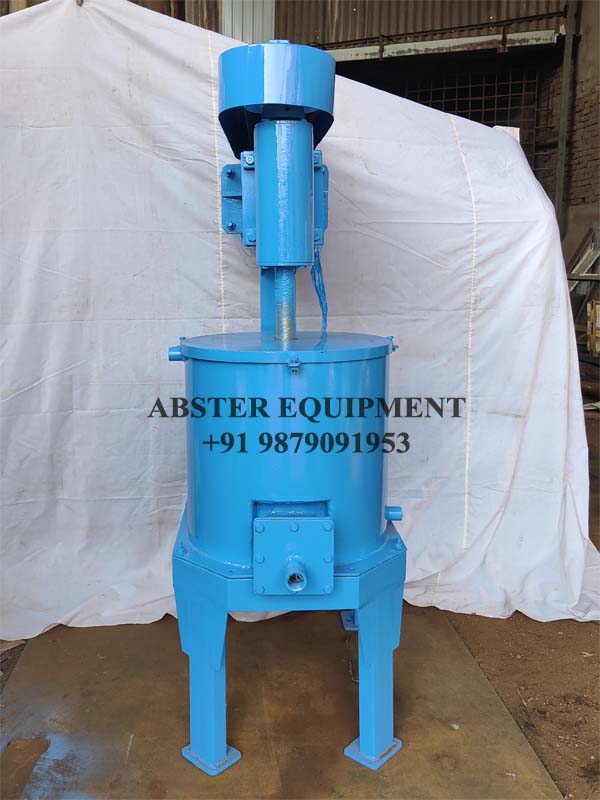

BEAD MILL (BATCH TYPE SAND MILL)

Having The Grinding Shell Capacity Of — Liters. This Machine Is Suitable For Grinding Low Medium High Viscosity Material Between 100 CPS And 4000CPS Thixotropics And Product With Highly Pigmented System. The Cabinet Is Totally Enclosed In M.S. Frame Giving Streamline Appearance And Comprises Of The Following.

Sturdy Mild Steel Heavy Duty Fabricated Body For The Mill.
Stainless Steel 304 Grinding Cylinder With Mild Steel Water Cooling Jacket, Provided With Inlet And Outlet Nozzle.
Stainless Steel 304 Grinding Disc.
Main Drive Motor Will Be—– HP TEFC 3ph, 440 Volts, 1440 RPM Motor.
The Above Drive Is Provided With Imported Self Aligned Bearings To Withstand High Speed And Initial Torque Of The Mill.
Glass Beads For Initial Charge.
Hence Complete With Material As Per Our Standard Design.

MODEL	SHELL VOLUME	WORKING CAPACITY	MOTOR HP
ABFBM – 2	2	½ LTRS	1
ABFBM – 5	5	2 LTRS	2
ABFBM -10	10	5 LTRS	3
ABFBM – 20	20	10 LTRS	5
ABFBM – 50	50	18 LTRS	7.5
ABFBM -100	110	37 LTRS	10
ABFBM -200	200	80 LTRS	15
ABFBM – 300	300	120 LTRS	20
ABFPBM – 500	500	250 LTRS	40
