Lab High Speed Disperser
Lab / Laboratory High Speed Disperser For Paints Dispersion Mixing Machine
Basic Information
| Place of Origin: | Idia |
|---|---|
| Brand Name: | Abster |
| Certification: | ISO9001 |
| Model Number: | LHSD750 |
| Minimum Order Quantity: | 1set |
| Price: | 1085-2350USD |
| Packaging Details: | wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets /month |
Detail Information
| Power: | 0.75kW | Explosion: | EX Proof/Non-ex Proof |
|---|---|---|---|
| Lifting Travel: | 250/260/300mm | Diameter Of Impeller: | 50/60mm |
| Centre Distance: | 900 Mm | Rotary Speed: | 0-6000 / 8000 R/m |
| Frequency Converter: | 0.75 KW | Lifting Mode: | Manual Or Electiric |
| Highlight: | 0.75KW Laboratory High Speed Disperser,Laboratory High Speed Disperser For Paints,0.75KW Dispersion Mixing Machine | ||
Product Description

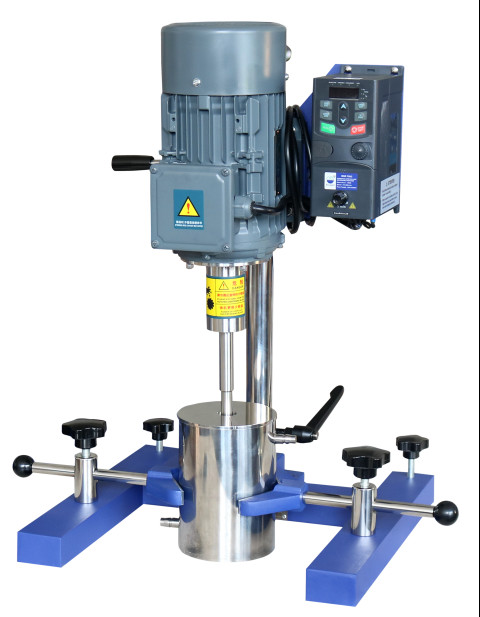

0.75kW Lab High Speed Disperser For Paints Dispersion Mixing Machine
High speed dispersing machines are widely used in coating, painting, printing inks, etc. The disperser is mainly to moisturize, mix, dissolve,stir and disperse the liquid and solid materials, and then the slurry will be mixed homogeneously and conveniently work for next step.
The main characteristics:
The technical data
The main parameter:
Related products: Bead Mill & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It’s better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
| 1. | 750W laboratory disperser installation mode: on the table |
| 2. | Frequency converter is directed installed in disperser with digital display of speed |
| 3. | No carbon brush, no fire sparks, low noise, long service life; |
| 4. | Good corrosion resistance, materials adopted 304 stainless steel which are touchable to test slurry. |
| 5. | LHSD750configure 2 kinds of disperses: one is zigzagged for dispersion, one is rounded for shear,which are highly standard to match requirements of lab tests. Each matches two different sizes of diameter. |
| 6. | LHSD750: The inlet and outlet of the cooling water of the tank are equipped with quick connectors to facilitate the laboratory personnel to quickly plug and unplug the cooling water pipe |
| No | main parameters | LHSD750 | LHSD750/2 | LHSD750-3 |
| 1 | Non Explosion-proof / Flameproof Motor (kW) | 0.75 | 0.75 | 0.75 |
| 2 | Frequency Converter (kW) | 0.75 | 0.75 | 0.75 |
| 3 | Speed Range (r/min) | 0-6000 | 0-6000 | 0-6000 |
| 4 | Lifting Stroke (mm) | 300 (electric) | 260(manual) | 250(manual) |
| 5 | Tank Volume (L) | 1.5 | 1.5 | 1.5 |
| 6 | Dispersing Impeller (mm) | 50&60 | 50&60 | 60 |
| 7 | Dispersing Disk (mm) | 50&60 | 50&60 | 60 |
| 8 | Dimensions: L*W*H (mm) | 470*435*840 | 475*430*670 | 350*350*730 |
| No | Main parts | LHSD750 | LHSD750-2 | LHSD750-3 |
| 1 | Motor type (non flameproof ) | Variable frequency motor | Variable frequency motor | Constant frequency motor |
| 2 | Frequency converter | 220/240/380/415V/50HZ, digital display | 220/240/380/415V/50HZ, digital display | 220/240/380/415V/50HZ, digital display |
| 3 | Lifting motor | no | no | |
| 4 | Jacked tank | 304 stainless steel with well polished treatment | 304 stainless steel with well polished treatment | 304 stainless steel with common polished treatment |
| 5 | Dispersing shaft | 304 stainless steel with well polished treatment | 304 stainless steel with well polished treatment | 304 stainless steel with common polished treatment |
| 6 | Dispersing disk / impeller | 304 stainless steel (2 sets) | 304 stainless steel (2 sets) | 304 stainless steel (1 set) |
| 7 | Flame of disperser | Carbon steel with color,stainless steel with surface polishing treatment | Carbon steel with color,stainless steel with surface polishing treatment | Carbon steel with color,stainless steel |
| 8 | Quick connectors of inlet and outlet of cooling water pipe | Yes, standard | Yes, standard | No |
If need more detailed information and Price, please don’t hesitate contact us, Also Warmly welcome to visit us.
